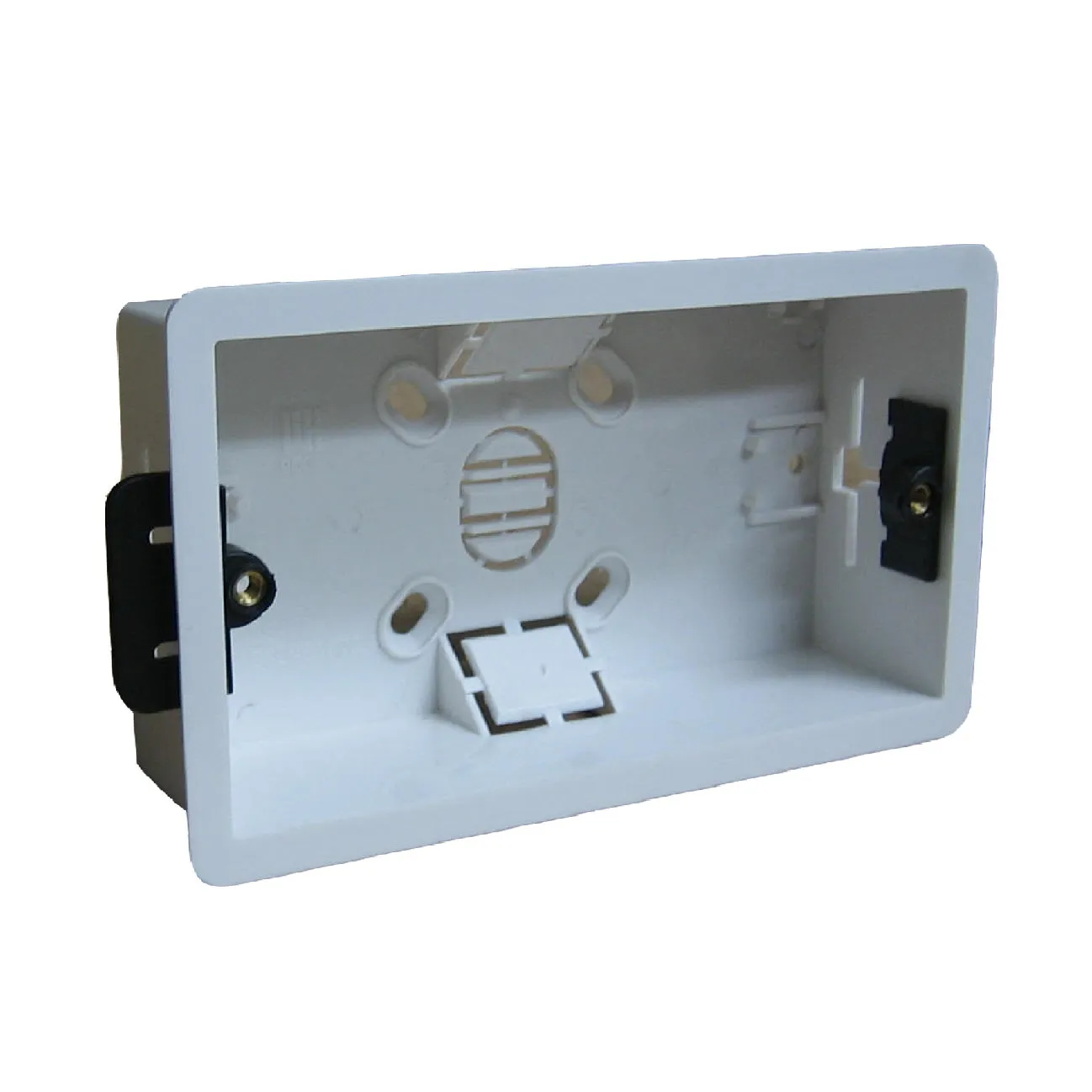

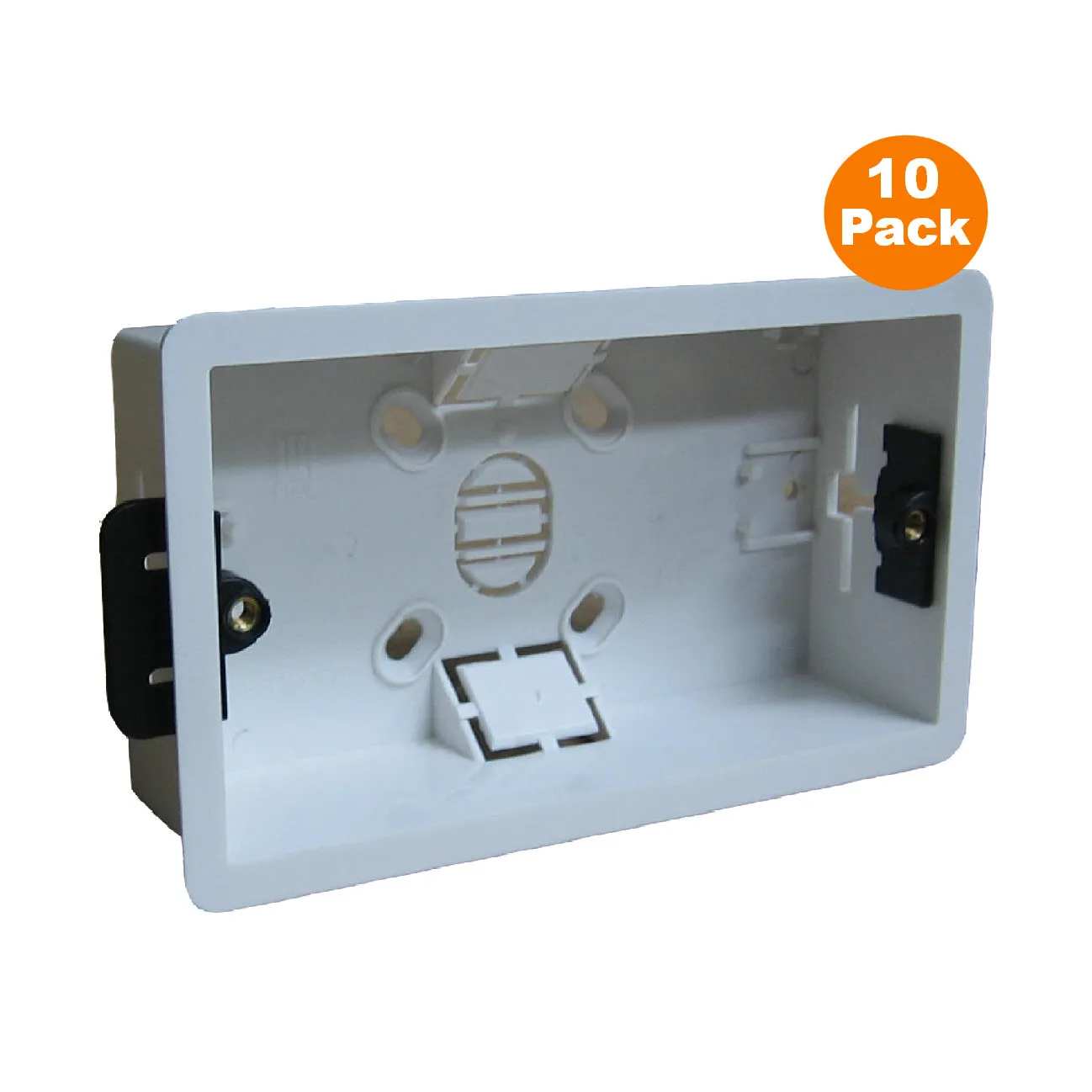

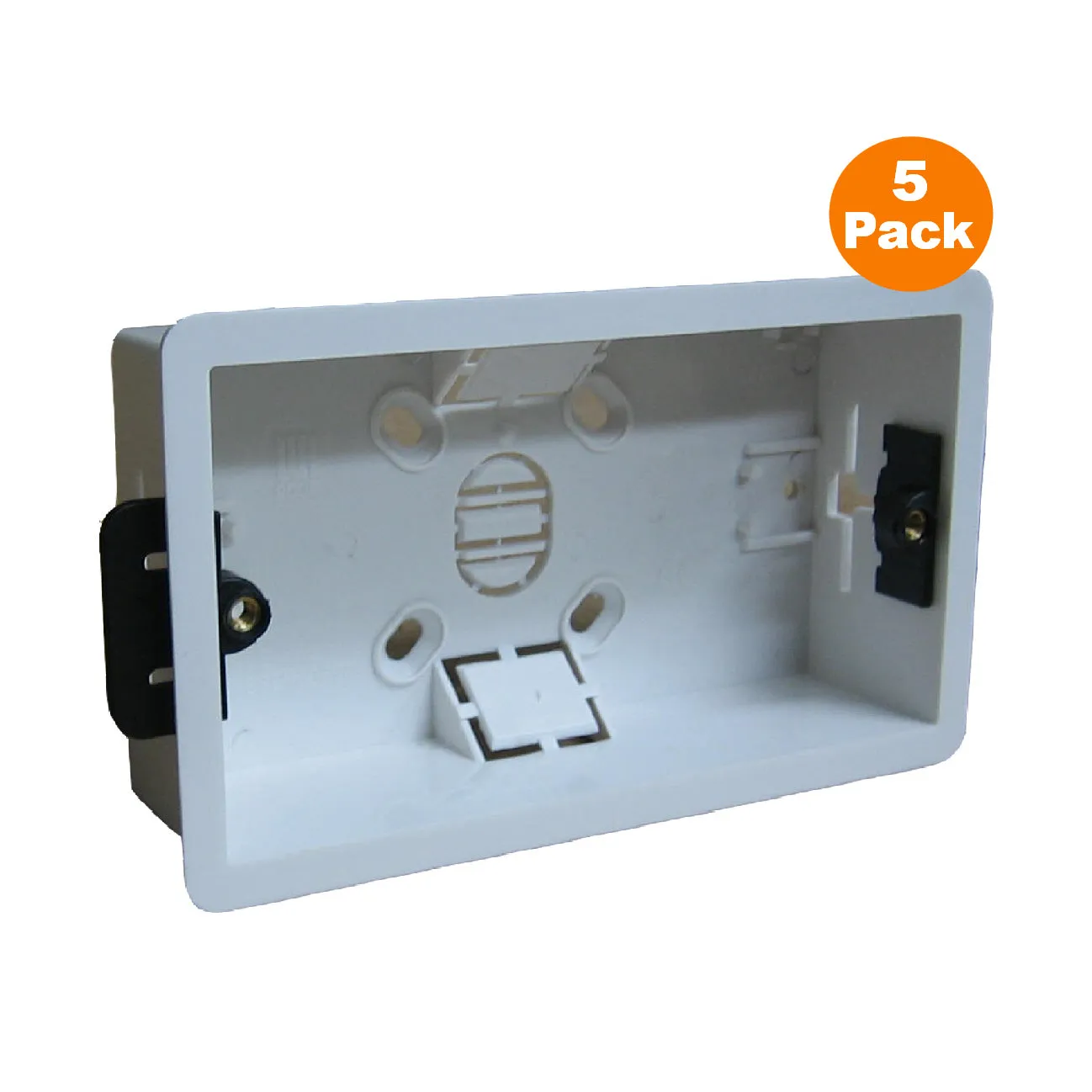

Double Dry Lining Wall Pattress 2 Gang

Double fast fix dry lining plasterboard pattress.

Dry lining box that is ideal for flush mounting in partition walls.

3 knockout cable entries (1 at rear 2 at each side)

For use with 2 gang faceplates.

Conforms to BS EN 60670.

Wall Back boxes are used behind face plates, they allow the face plates to be screwed and secured flush to a wall. This back box should be used with a plaster boarded stud wall, the clips at the side of the back box should be pushed out and when the face plate is screwed on, the back box as well as the face plate are held in position. Simply Cut hole in plasterboard with a pad saw, Place dry lining box in position and push out retaining clips.

Specifications

Electrical Box Material: PlasticElectrical Box Mounting: Dry Lining / WallInternal Depth: 35mm No. of Gangs: 2 Colour: White Depth: 35mm Height: 73mm Width: 133mmSuitable for plasterboard thickness's of 6 to 18mm
